NVIDIA Jetson 整機

Jetson AGX Orin / Xavier 工控機 8F2E1

用戶手冊
京東訂購
淘寶訂購

出廠預裝 AGX ORIN / AGX Xavier 核心模組
1 個 micro SD 卡卡槽
可支持上電自動開機或按鍵啟動
板載 Reset、Recovery 按鍵
產品尺寸：430mm×360mm×88mm
電源要求：220V
工作溫度： -20~+65℃
重量：3340g

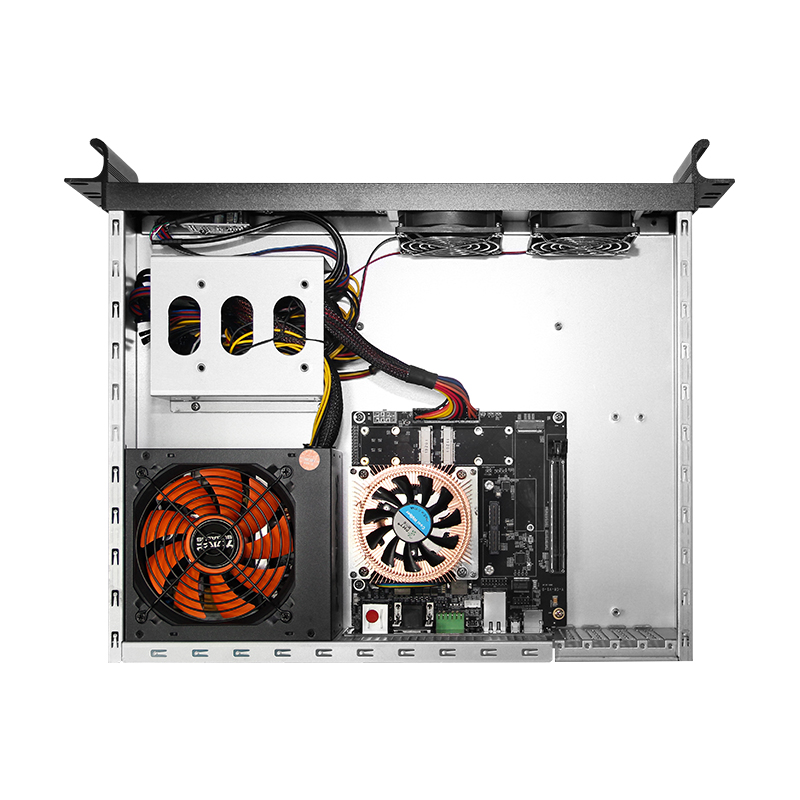

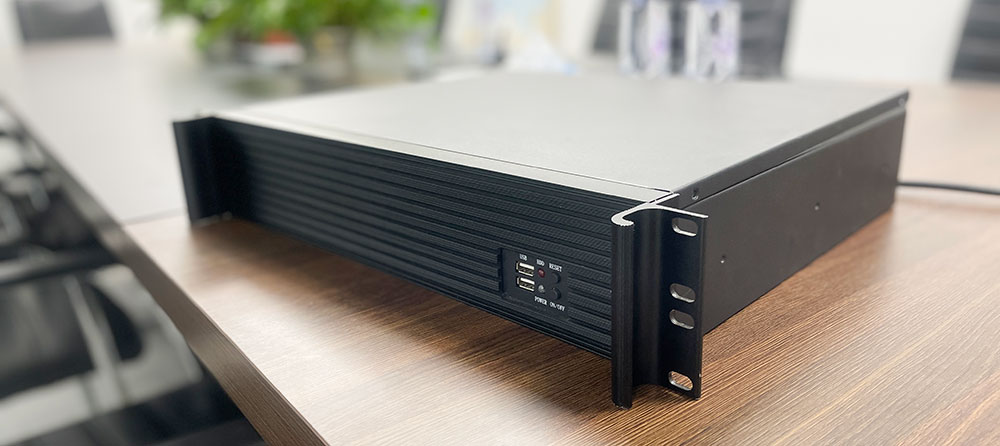

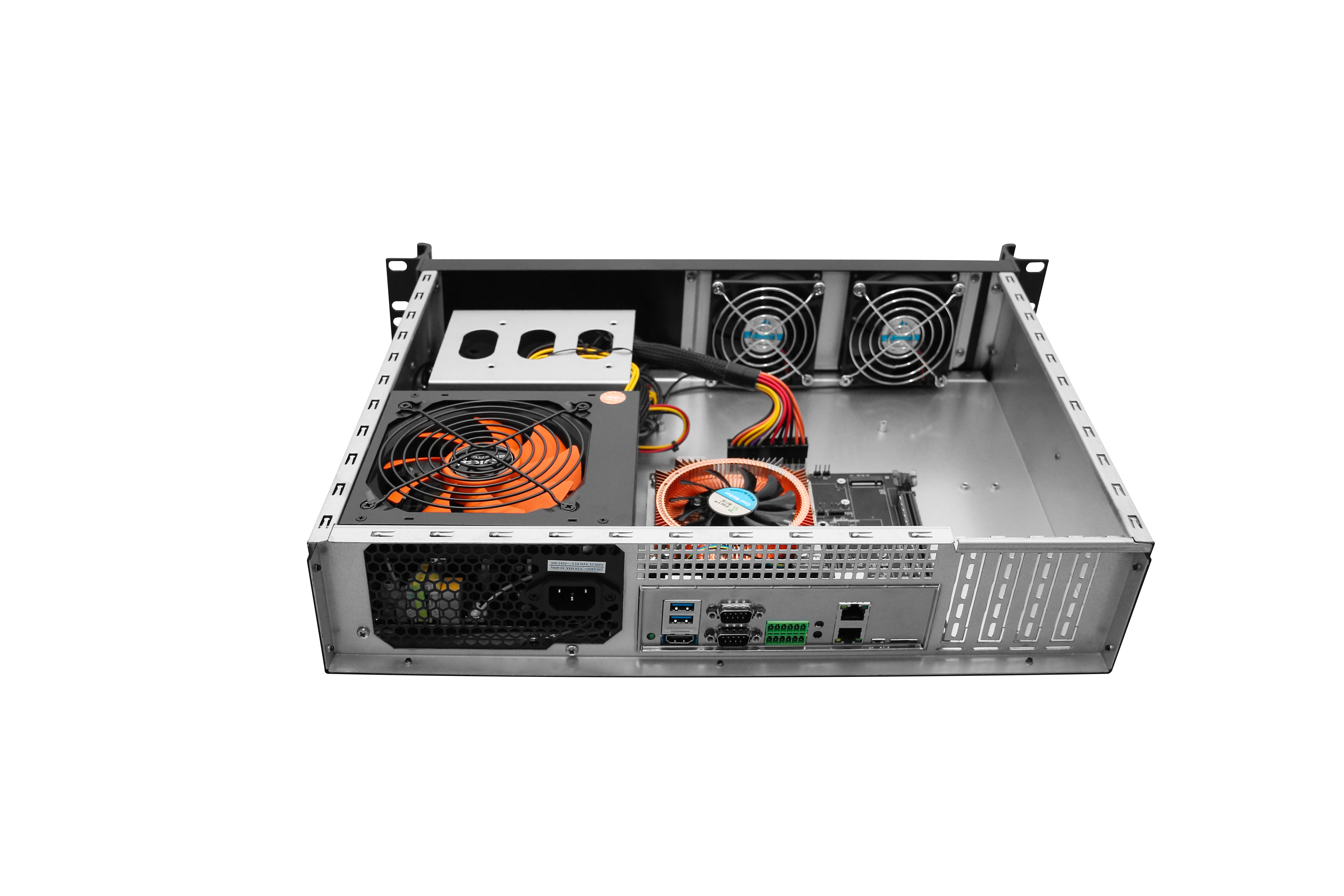

NVIDIA Jetson AGX Xavier/AGX Orin

2U工控機 8F2E1

* 適配模組:

NVIDIA Jetson AGX Orin/AGX Xavier Module

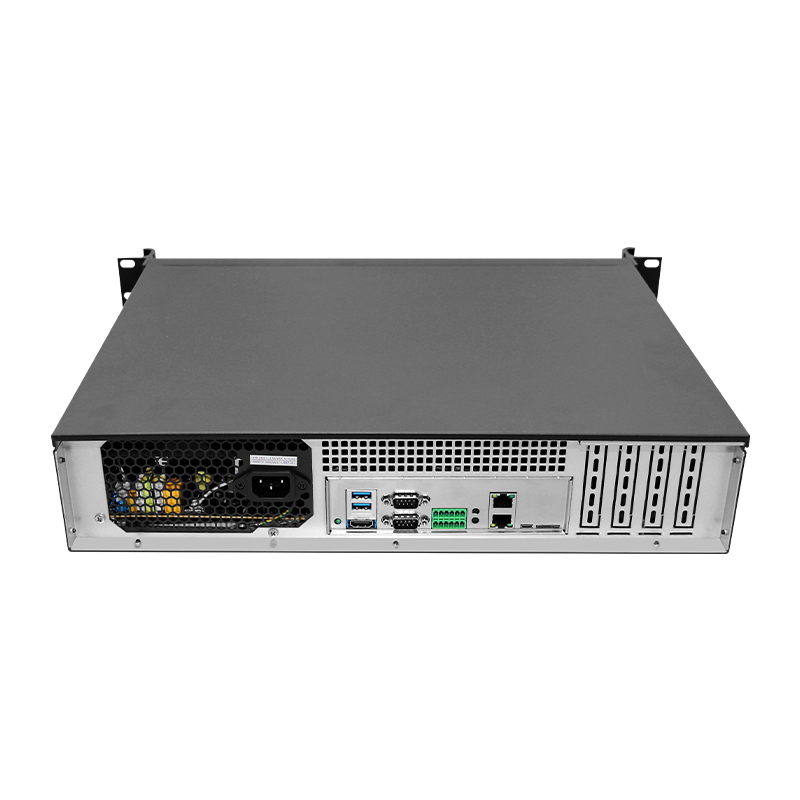

* 通用接口:

Offer 2x RJ45, 2x USB, 1x HDMI and 1x USB Micro B

* 外設接口:

1x FAN, 1x RTC, 2x M.2 PCIe Key M connector, 1x 10 pin USB expansion connector, 2x MiniPCIE connector, 1x 120 pins CSI camera connector, 1x TF slot, 2x DB9 connector and 1x24 pin expansion header

* Input Power:220V

Product Name	8F2E1
Jetson Module Supported	NVIDIA Jetson AGX Orin/AGX Xavier
Networking	2x Gigabit Ethernet (10/100/1000 BASE-T) RJ45
USB	2x USB 3.0 Type-A 1x Micro USB
Camera	1x 120 pins CSI Camera expansion header
Display	1x HDMI
FAN	1x FAN connector
M.2 KEY M	2x M.2 KEY M interface
Other I/O	2x CAN，2x RS232，1x Debug，4x GPIO，1x SPI，2x I2C
Mechanical	430mm x 360mm x 88mm
Weight	6050g
Operating Temperature	-20℃~65℃

Y-C8 Jetson Carrier Board features networking capability that is equipped with two Gigabit Ethernet (10/100/1000) port for fast data transfer speed. It also comes with two USB 3.0 Type-A ports, two USB 2.0 and one Micro-B for versatile connectivity options.

Note

When used with the Jetson AGX Xavier module, only one USB 3.1 is available, the rest is USB 2.0, and one RJ45 network port is optional

	AGX Xavier 32G	AGX Xavier Industrial	AGX Orin 32G	AGX Orin 64G
AI Performance	32 TOPS	30 TOPS	200 TOPS	275 TOPS
GPU	512-core NVIDIA Volta GPU with 64 Tensor Cores		1792-core NVIDIA Ampere GPU with 56 Tensor Cores	2048-core NVIDIA Ampere GPU with 64 Tensor Cores
CPU	8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3		8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3	12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
Memory	32GB 256-bit LPDDR4x 136.5GB/s	32GB 256-bit LPDDR4x (ECC support) 136.5GB/s	32GB 256-bit LPDDR5 204.8 GB/s	64GB 256-bit LPDDR5 204.8 GB/s
Storage	32GB eMMC 5.1	64GB eMMC 5.1
Video Encode	4x4K60 (H.265) 16x1080p60 (H.265) 32x1080p30 (H.265)	2x 4K60 (H.265) 6x 4K30 (H.265) 12x 1080p60 (H.265) 24x 1080p30 (H.265)	1x4K60 (H.265) 3x4K30 (H.265) 6x1080p 60 (H.265) 12x1080p 30 (H.265)	2x4K60 (H.265) 4x4K30 (H.265) 8x1080p 60 (H.265) 16x1080p 30 (H.265)
Video Decode	2x8K30 (H.265) 6x4K60 (H.265) 26x1080p60 (H.265) 52x 1080p30 (H.265)	2x 8K30 (H.265) 4x 4K60 (H.265) 8x 4K30 (H.265) 18x 1080p60 (H.265) 36x 1080p30 (H.265)	1x8K30 (H.265) 2 x4K60 (H.265) 4x4K30 (H.265) 9x1080p60 (H.265) 18x1080p30 (H.265)	1x8K30 (H.265) 3x4K60 (H.265) 7x4K30 (H.265) 11x1080p60 (H.265) 22x 1080p30 (H.265)
PCIe	1x8 + 1x4 + 1x2 + 2x1 (PCIe Gen4, Root Port & Endpoint)		Up to 2x8 + 2x4 + 2x1 (PCIe Gen4, Root Port & Endpoint)
Networking	10/100/1000 BASE-T Ethernet		1x GbE 4x 10GbE
Display	3 multi-mode DP 1.4 /eDP 1.4/HDMI 2.0 No DSI support		1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Power	10W - 30W	20W - 40W	15W - 40W	15W - 60W

*出廠預安裝NVIDIA Jetpack, Jetpack SDK包括板支持包(BSP)， Linux操作系統，NVIDIA CUDA, cuDNN和TensorRT軟件庫，用于深度學習，計算機視覺，GPU計算，多媒體處理等。
*支持整個Jetson軟件堆棧和各種開發人員工具，用于構建PLink-AI提供的快速和強大的AI應用程序

上一個：Jetson AGX Xavier 載板 Y-C9下一個：Jetson AGX Orin / AGX Xavier 工控機 8F3E1
