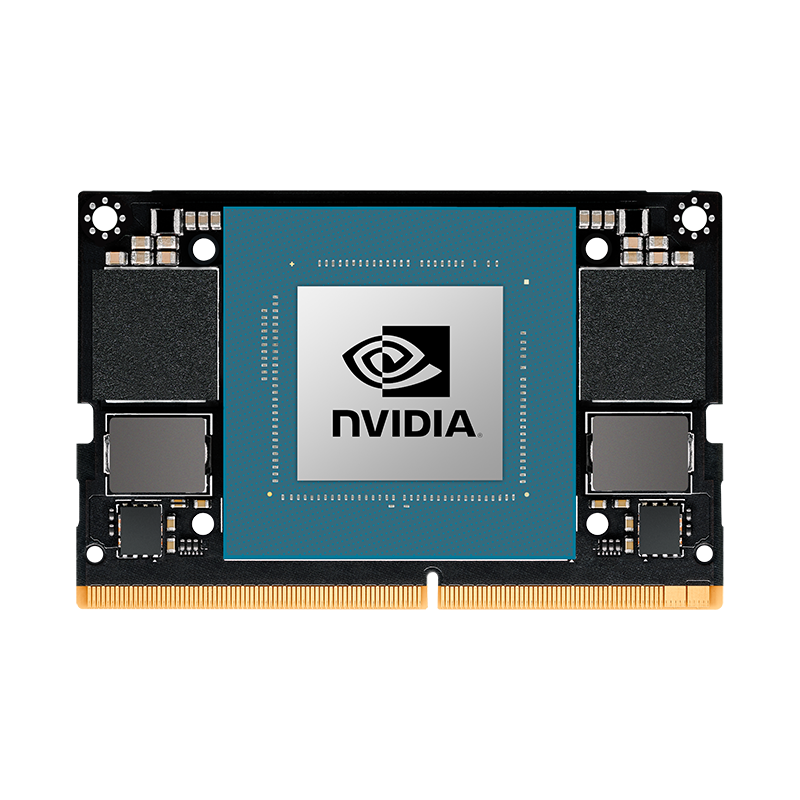

Jetson Orin NX 模組極其小巧，但可提供高達 100 TOPS 的 AI 性能，功率可在 10W 到 25W 之間進行配置。此模組的性能最高可達到 Jetson AGX Xavier 的 3 倍、Jetson Xavier NX 的 5 倍。
Jetson Orin NX 模組技術規格
|
|
Jetson Orin NX 8GB |
Jetson Orin NX 16GB |
|
AI Performance |
70 TOPS (INT8) |
100 TOPs (INT8) |
|
GPU |
NVIDIA Ampere architecture with 1024 NVIDIA®CUDA®cores and 32 tensor cores |
|
|
Max GPU Freq |
765 MHz |
918 MHz |
|
CPU |
6-core Arm®Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
8-core Arm®Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
|
CPU Max Freq |
2 GHz |
|
|
DL Accelerator |
1x NVDLA v2.0 |
2x NVDLA v2.0 |
|
DLA Max Frequency |
614 MHz |
|
|
Vision Accelerator |
PVA v2.0 |
|
| Memory |
8GB 128-bit LPDDR5 102.4 GB/s |
16GB 128-bit LPDDR5 102.4 GB/s |
|
Storage |
Supports external NVMe |
|
|
CSI Camera |
Up to 4 cameras (8 via virtual channels*) 8 lanes MIPI CSI-2 D-PHY 1.2 (20 Gbps) |
|
|
Video Encode |
1x 4K60 | 3x 4K30| 6x 1080p60 | 12x 1080p30 (H.265) H.264, H.265, AV1 |
|
|
Video Decode |
1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60 | 18x 1080p30 (H.265) H.264, H.265, VP9, AV1 |
|
|
UPHY |
3 x1 + 1 x4 PCIe Gen 4 3x USB 3.2 Gen2 |
|
|
Networking |
1x GbE |
|
|
Display |
1x8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
|
|
Other I/O |
3x USB 2.0 3x UART | 2x SPI | 4x I2C | 1x CAN | DMIC | DSPK | 2x I2S | 15x GPIOs |
|
|
Power |
10W | 15W | 20W |
10W | 15W | 25W |
| Mechanical |
69.6mm x 45mm 260-pin SO-DIMM connector |
|
