NVIDIA Jetson 整機

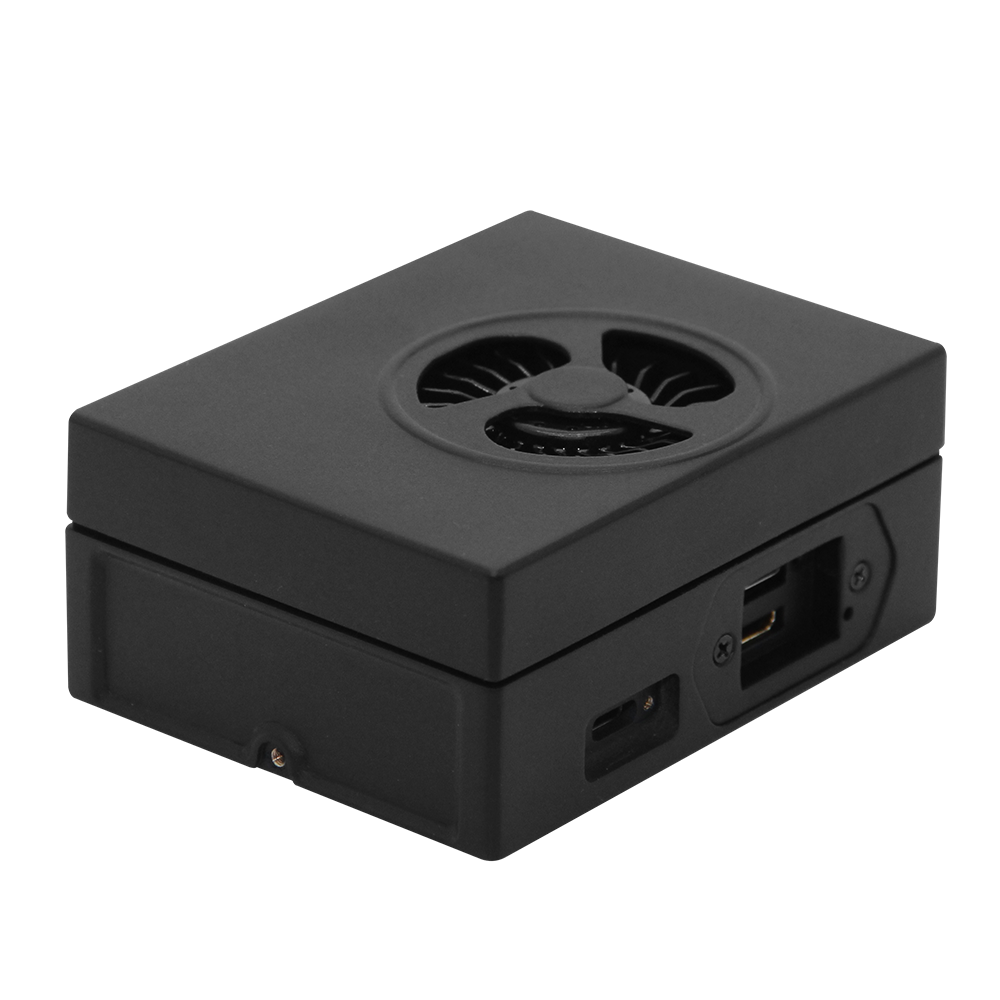

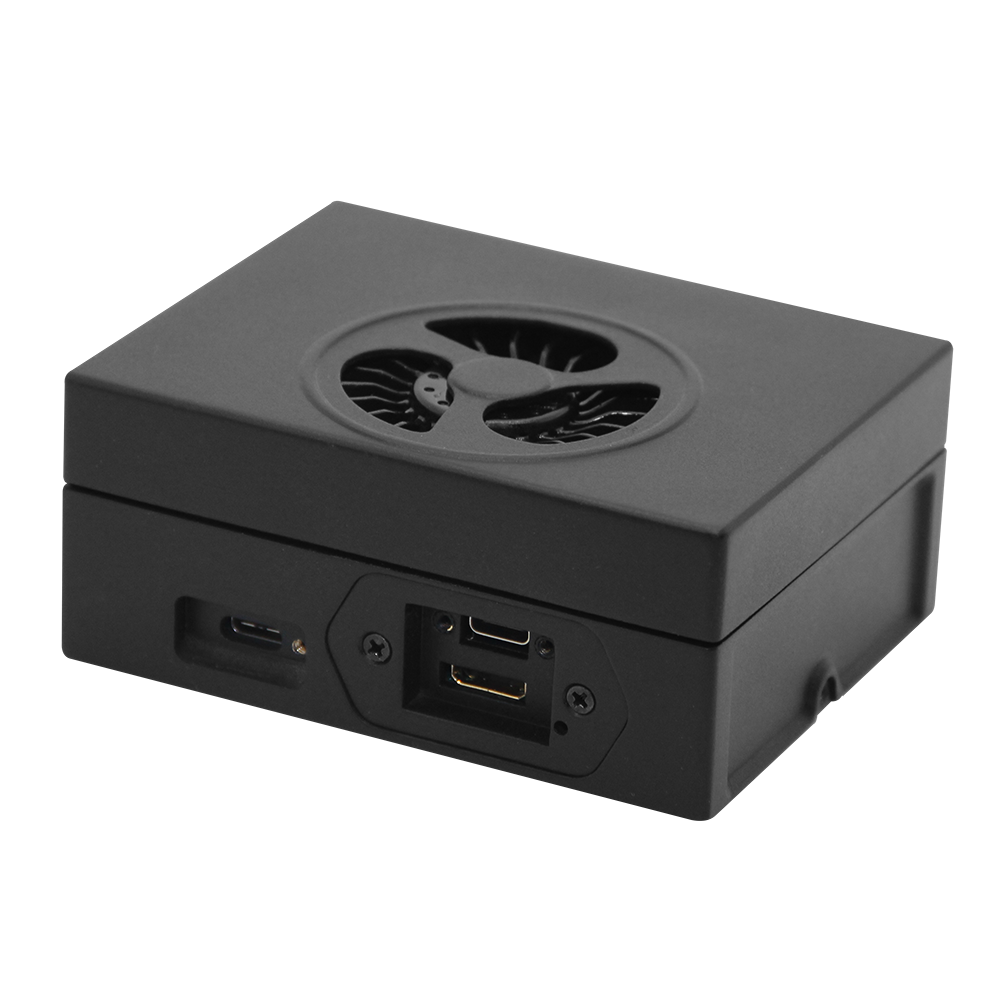

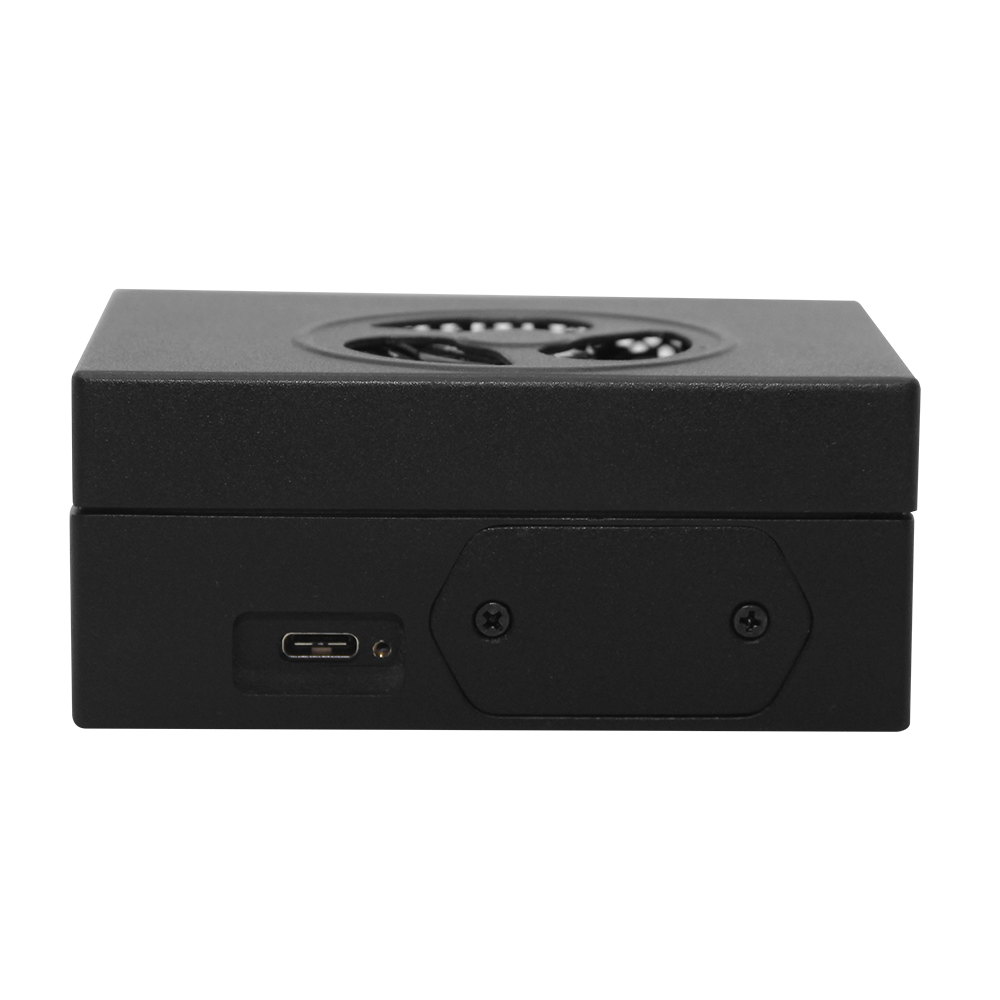

Jetson Xavier NX/Orin NX 工控機 NX16-7F4

搭載 Jetson Xavier NX 16G / Orin NX 16G模組
尺寸：98mm x 76mm x 42mm
重量：182g

Feature

* NVIDIA Jetson Carrier Board:

Support NVIDIA Jetson Xavier NX Module

* Versatile Connectivity:

Offer 2x RJ45, 2x USB, 1x HDMI

* Input Power: DC +12V~ +24V

* Compact and Durable during Operation:

Design in small size of 98mm*76mm*42mm to save operation space, and maintain function in the temperature range from -20°C to 65℃

AI Performance	21 TOPS
GPU	384-core NVIDIA Volta? architecture GPU with 48 Tensor Cores
CPU	6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3
Memory	16GB 128-bit LPDDR4x 59.7GB/s
Storage	16GB eMMC 5.1
Video Encode	2x 4K60 (H.265) 4x 4K30 (H.265) 10x 1080p60 (H.265) 22x 1080p30 (H.265)
Video Decode	2x 8K30 (H.265) 6x 4K60 (H.265) 12x 4K30 (H.265) 22x 1080p60 (H.265) 44x 1080p30 (H.265)
CSI Camera	Up to 6 cameras (24 via virtual channels) 14 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)
Power	10W - 20W

Product Name	NX16-7F4
Module	NVIDIA Jetson Xavier NX Modules
Type	Embedded Computer
Size	98mm76mm42mm
Weight	182g
Temperature	-20~+65°C
Power Supply	DC +9V～+24V

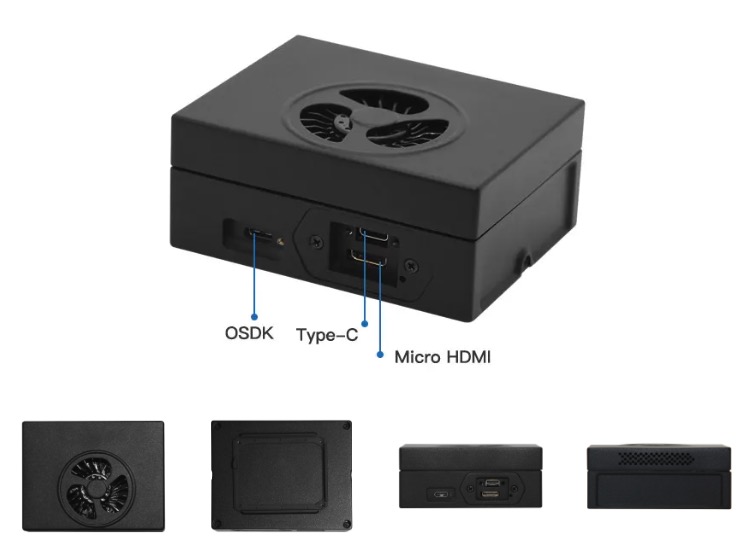

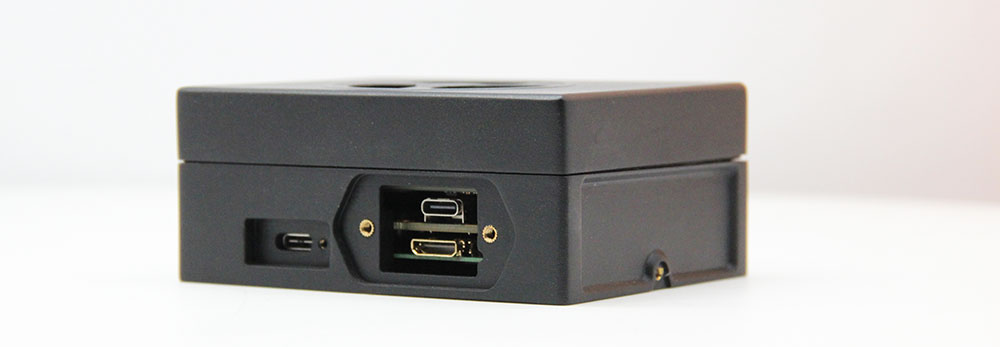

I/O	USB Type-C, Micro-HDMI,OSDK

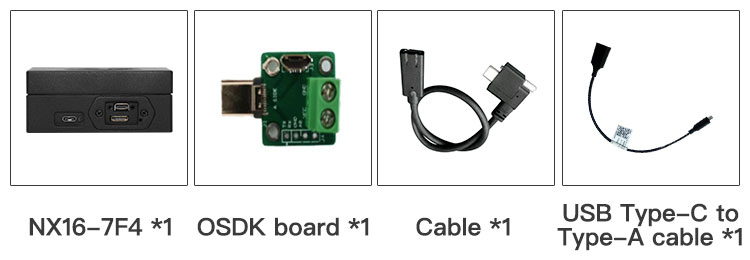

Packing List
