11D2E2人工智能計算平臺(以下簡稱11D2E2)可適配搭載NVIDIA Jetson Orin NX/Orin Nano 核心模塊。最高可提供100 TOPS的算力，具有豐富的對外接口，內部接口器件均采用寬溫型號。
11D2E2可通過內置miniPCIe接口、M.2接口，可拓展SSD存儲卡、4G/5G通信模塊、各類視頻 采集/輸出卡、AD采集卡、多串口卡、聲音采集/輸出卡、多功能IO卡等等。
11D2E2最多可支持4路GMSL/GMSL2攝像頭模組(可選配支持2路或4路，已適配GMSL攝像頭 型號請聯系本公司相關人員獲取);預留光耦隔離IO可支持24V穩壓電源輸入輸出?？赏卣怪С?POE千兆網絡，兼容工業自動化、車路協同等場景需求。
|
Feature |
|
|
Y-C11 |
Develop carrier board |
|
Module |
NVIDIA Jetson Orin NX / Orin Nano Module |
|
Temperature |
-20 ~ +65°C |
|
Dimensions (W×D×H) |
190.30mm * 180.50mm * 75.30mm (Including I/O ports and mounting holes) |
|
Weight |
1603g |
|
Power Supply |
Spec |
|
Input Type |
DC |
|
Input Voltage |
+12V ~ +24V |
|

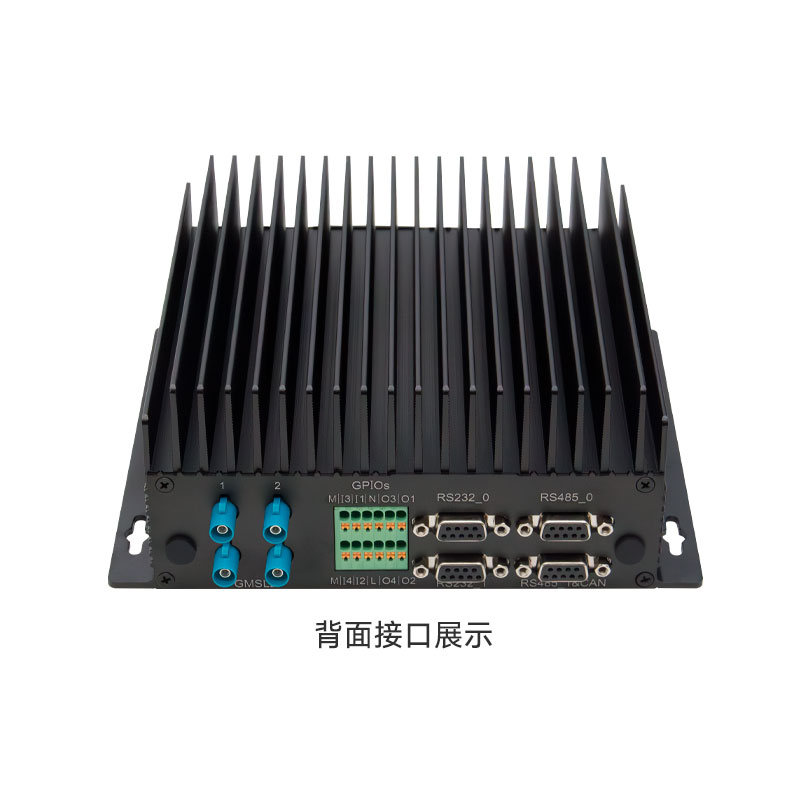

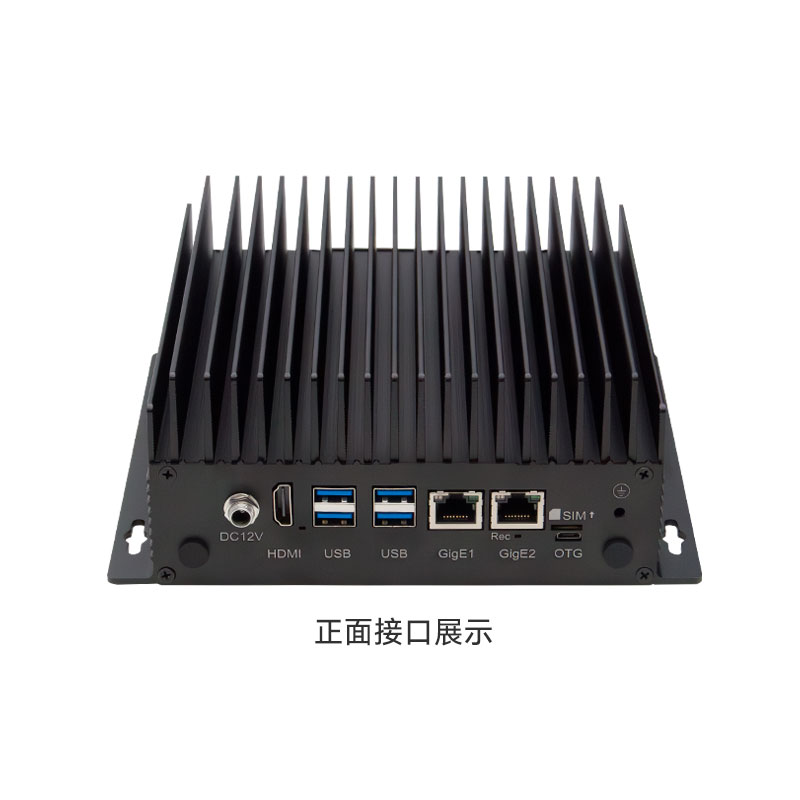

Interface |
Quantity |
Interface |
Quantity |
|
USB3.0 Type-A |
4 |
Micro USB |
1 |
|
RJ45 |
2 |
HDMI |
1 |
|
RS232(DB9) |
2 |
RS485(DB9) |
2 |
|
CAN |
1 |
SIM Card Slot |
1 |
|
光耦隔離GPI (24V) |
4 |
光耦隔離GPO (24V) |
4 |
|
GMSL |
2(標準機型配置不支持，可選配支持2路或4路) |
||
|
*RJ45可選配POE供電功能，只能給外部POE供電，默認配置不帶POE功能。 |
|||
適配Jetson模組參數
|
Module |
Jetson ORIN NX 16GB |
Jetson ORIN NX 8GB |
Jetson Orin Nano 8GB |
Jetson Orin Nano 4GB |
|
AI Performance |
100 TOPS |
70 TOPS |
40 TOPS |
20 TOPS |
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
|
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64- bit CPU |
|
|
Memory |
16GB 128-bit LPDDR5102.4GB/s |
8GB 128-bit LPDDR5102.4GB/s |
8GB 128-bit LPDDR5 68 GB/s |
4GB 64-bit LPDDR5 34 GB/s |
|
Storage |
Support external NVME |
Support external NVME |
||
|
Video Encode |
1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
1080p30 supported by 1-2 CPU cores |
||
|
Video Decode |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
||
|
Power |
10W - 25W |
10W - 20W |
7W - 15W |
7W - 10W |
