NVIDIA Jetson 擴(kuò)展載板

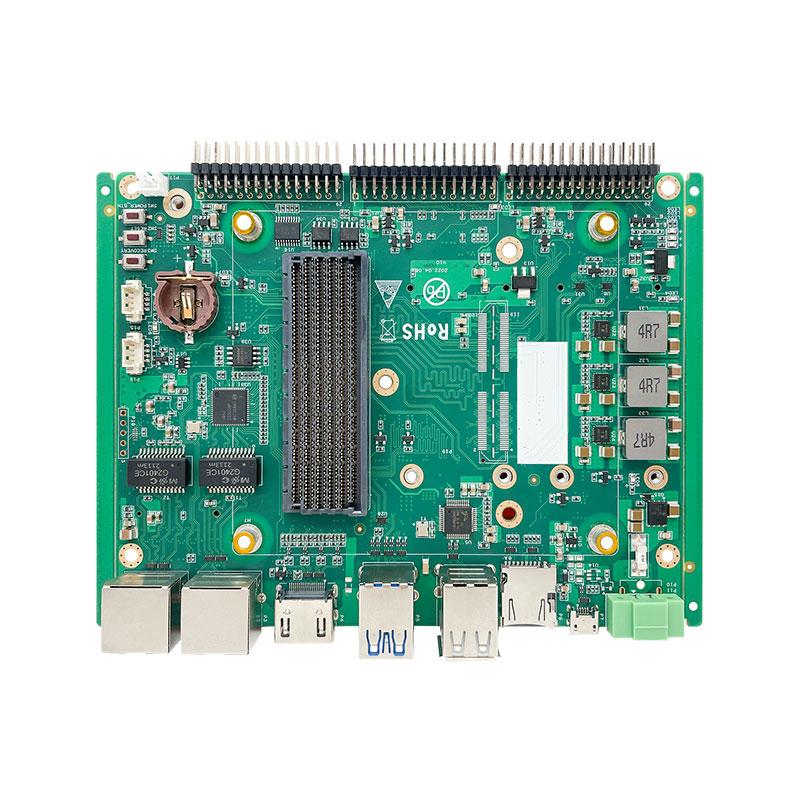

Jetson AGX Orin /AGX Xavier載板 Y-C13

NVIDIA Jetson AGX Orin/AGX Xavier核心模組
Power Supply：DC+12V
算力高達(dá)275 TOPS

NVIDIA Jetson AGX Xavier/AGX Orin

載板/開發(fā)板 Y-C13

主要特性

* 適配模組: NVIDIA Jetson AGX Orin/AGX Xavier Module

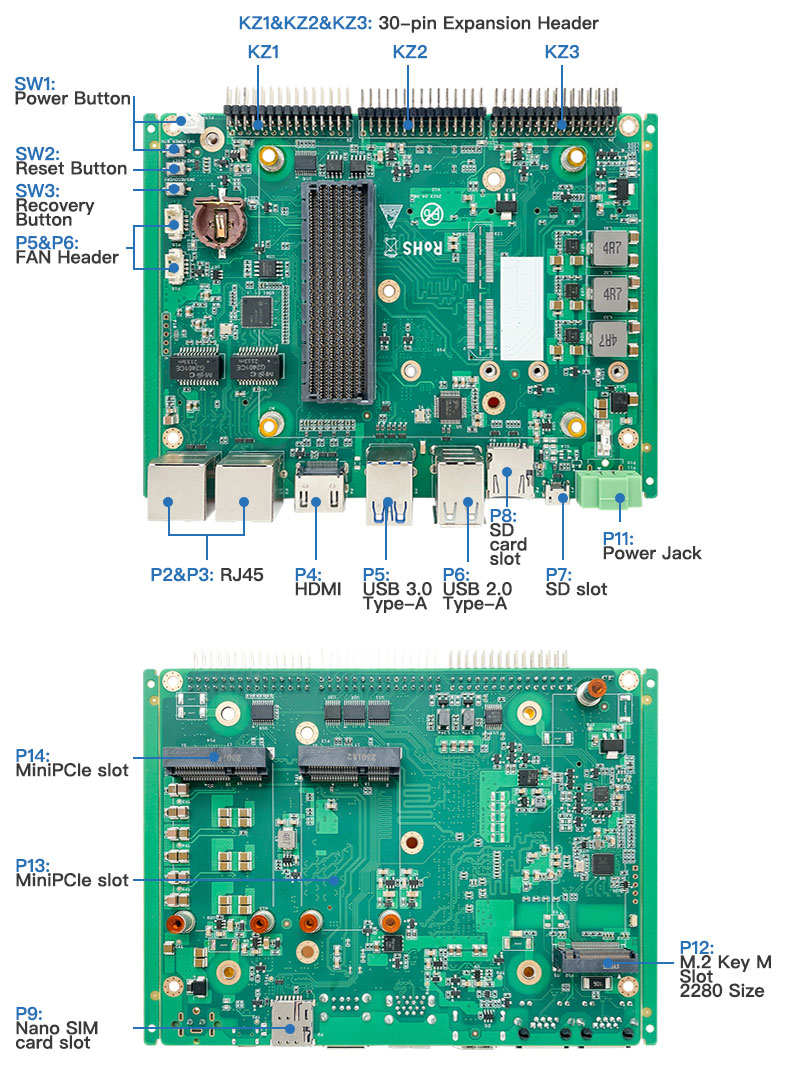

* 通用接口: 2x RJ45, 4x USB, 1x HDMI and 1x Micro USB

* Other I/O: 2x MiniPCIe, 1x Nano SIM card slot, 1x M.2 Key M 2280, 1x 30-Pin(9xGPIO, 3xI2C, 1xSPI, 1xI2S, 3xUART)

* 輸入功率: DC +12V

* 尺寸: 147mm*123mm*26.6mm

* 工作溫度: -40°C to 85℃

Product Name	Y-C13
Jetson Module Supported	NVIDIA Jetson AGX Xavier/AGX Orin
Networking	2x GigabitEthernet (10/100/1000)
USB	4x USB 1x Micro USB
Display	1x HDMI
FAN	1x FAN connector（12V PWM）
M.2 KEY M	1x M.2 KEY M interface
Other I/O	9xGPIO, 3xI2C, 1xSPI, 1xI2S, 3xUART
Mechanical	147mm123mm26.6mm
Weight	140g
Operating Temperature	-40℃~+85℃
