NVIDIA Jetson 整機

Jetson AGX Orin/AGX Xavier 工控機 8F5E2

Jetson AGX Orin/AGX Xavier 工控機 8F5E2

用戶手冊
京東訂購
淘寶訂購

產品尺寸：238mm×222mm×67 mm
電源要求：12V
工作溫度： -20~+65℃
重量：3065g

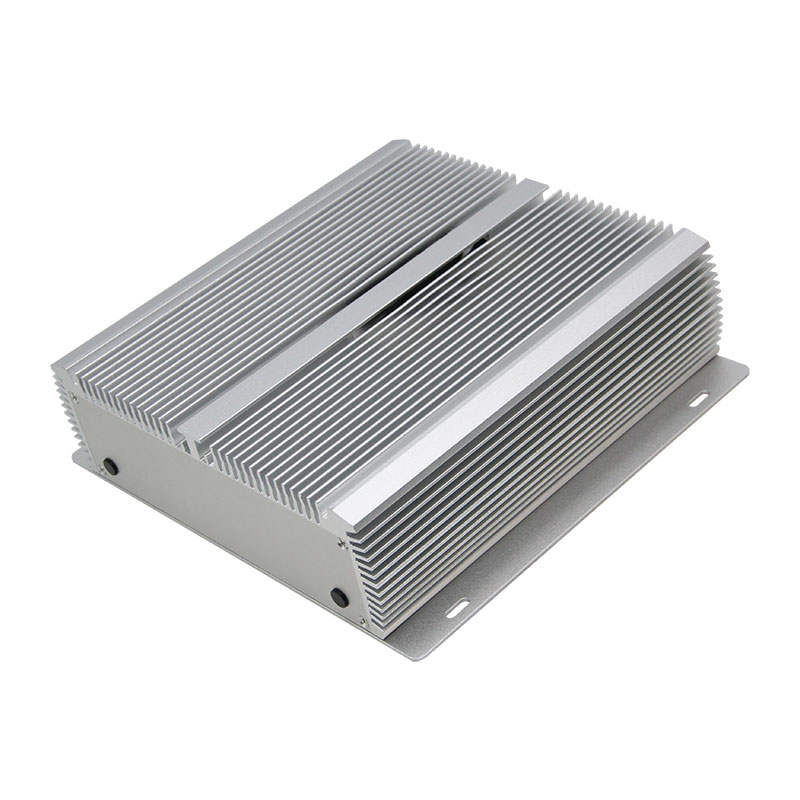

NVIDIA Jetson AGX Xavier/AGX Orin

嵌入式工控機 8F5E2

* 適配模組: Support NVIDIA Jetson AGX Orin/AGX Xavier Module

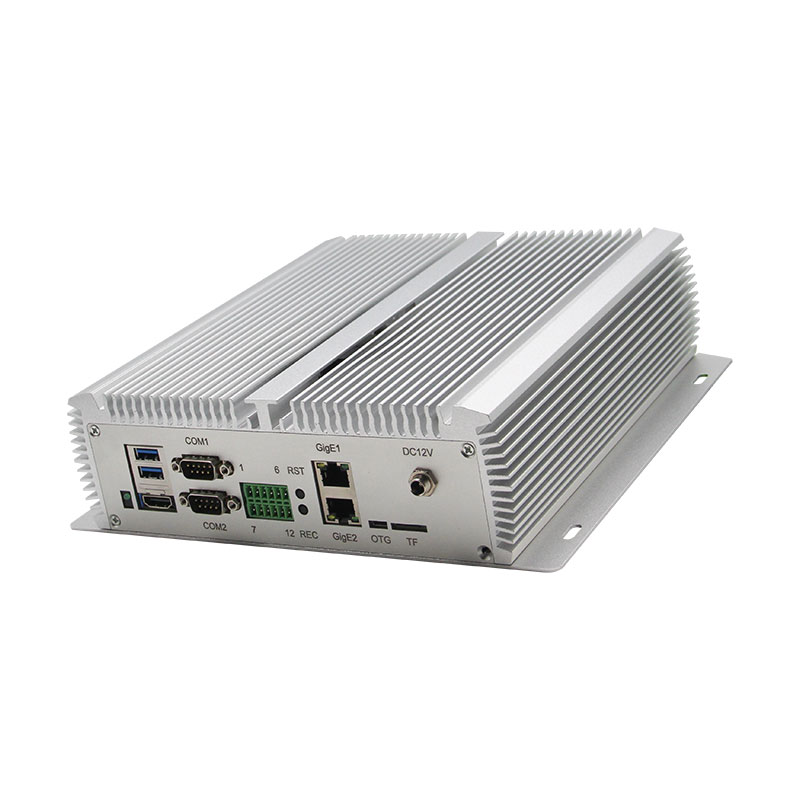

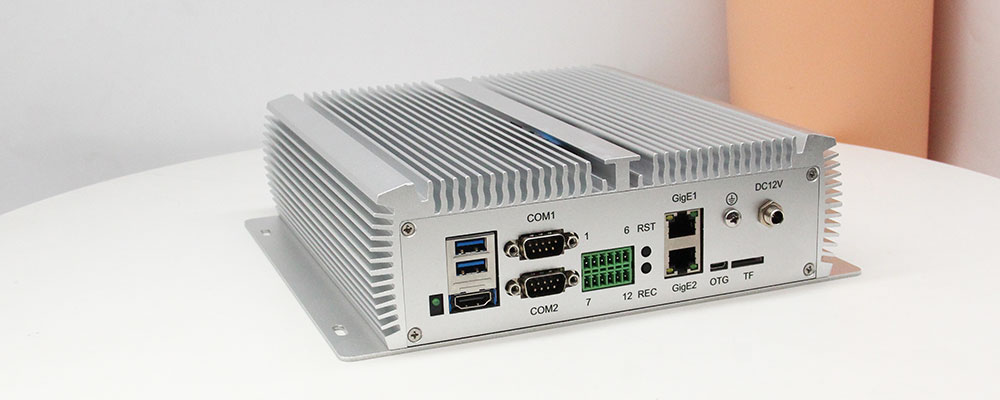

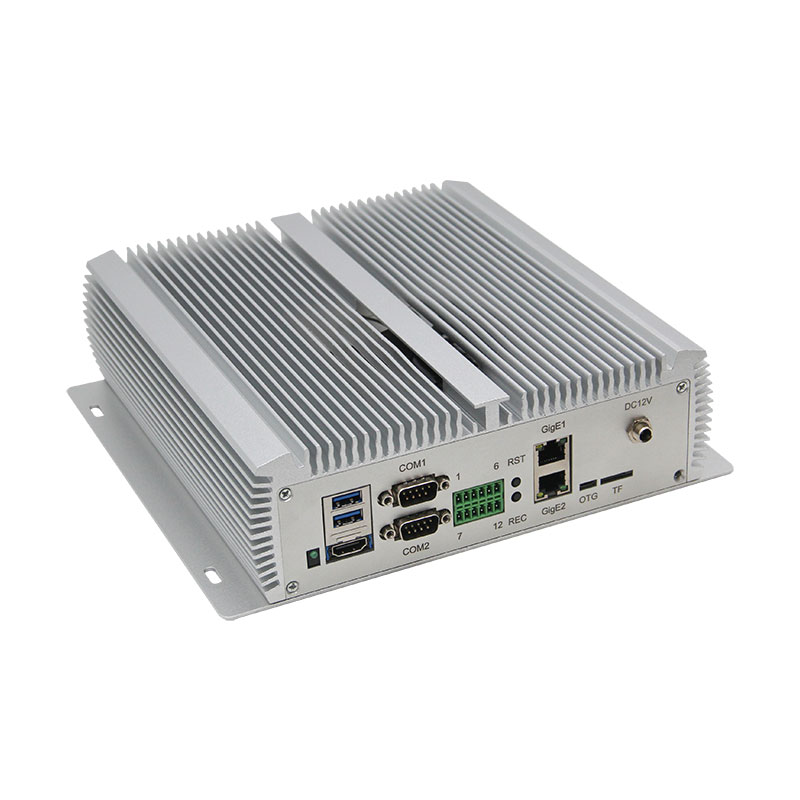

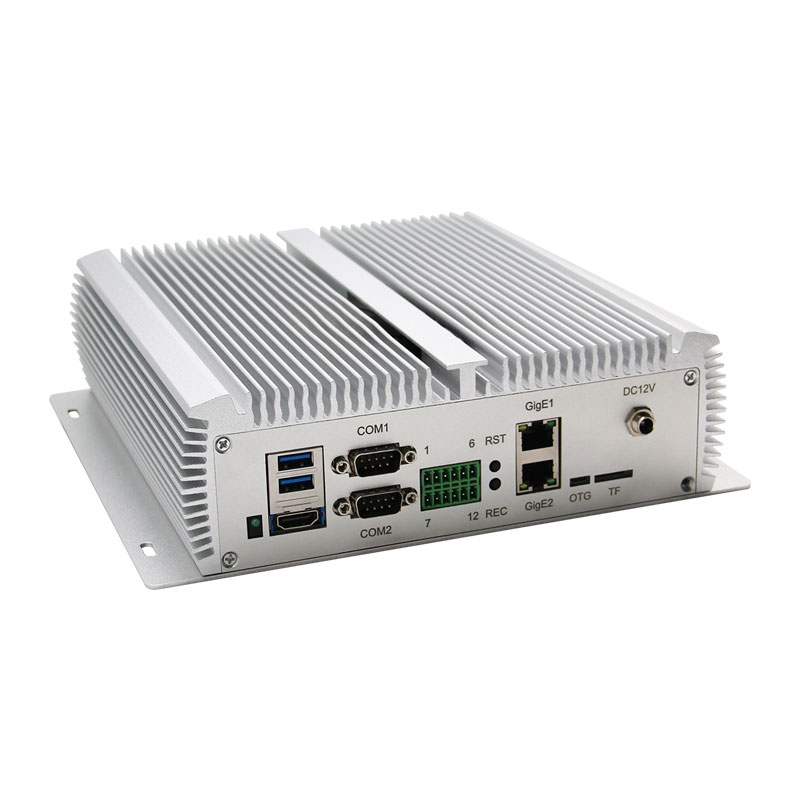

* 通用接口: 2x RJ45, 2x USB 3.0 and 1x HDMI
* 外設接口: 1x fan, 1x OTG, 2x COM, 2x RS232，4x GPIO, 1x TF slot, 1x RET, 1x REC, 1x SPI, 2x I2C,1x 24 pin connector
* Input Power: DC +12V

* 可擴展:

4G/5G communication module, WiFI/Bluetooth module, Video capture/output module.

Product Name	8F5E2
Jetson Module Supported	NVIDIA Jetson AGX Xavier/AGX Orin
Networking	2x Gigabit Ethernet (10/100/1000)
USB	2x USB 3.0 Type-A
Display	1x HDMI
FAN	1x FAN connector（12V PWM）
M.2 KEY M	2x M.2 KEY M interface
Other I/O	2x CAN, 2x RS232, 4x GPIO, 1x SPI, 2x I2C,
Mechanical	238mm x 222mm x 67mm
Weight	3065g
Operating Temperature	-20℃~+65℃

Note：與Jetson AGX Xavier模塊配合使用時，只有一個USB 3.1可用，其余為USB 2.0，一個RJ45網口可選

	AGX Xavier 32G	AGX Orin 32G	AGX Orin 64G
AI Performance	32 TOPS	200 TOPS	275 TOPS
GPU	512-core NVIDIA Volta GPU with 64 Tensor Cores	1792-core NVIDIA Ampere GPU with 56 Tensor Cores	2048-core NVIDIA Ampere GPU with 64 Tensor Cores
CPU	8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3	8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3	12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
DL Accelerator	2x NVDLA	2x NVDLA v2
Vision Accelerator	2x PVA	1 x PVA v2
Memory	32GB 256-bit LPDDR4x 136.5GB/s	32GB 256-bit LPDDR5 204.8 GB/s	64GB 256-bit LPDDR5 204.8 GB/s
Storage	32GB eMMC 5.1	64GB eMMC 5.1
Video Encode	4x4K60 (H.265) 16x1080p60 (H.265) 32x1080p30 (H.265)	1x4K60 (H.265) 3x4K30 (H.265) 6x1080p 60 (H.265) 12x1080p 30 (H.265)	2x4K60 (H.265) 4x4K30 (H.265) 8x1080p 60 (H.265) 16x1080p 30 (H.265)
Video Decode	2x8K30 (H.265) 6x4K60 (H.265) 26x1080p60 (H.265) 52x 1080p30 (H.265)	1x8K30 (H.265) 2 x4K60 (H.265) 4x4K30 (H.265) 9x1080p60 (H.265) 18x1080p30 (H.265)	1x8K30 (H.265) 3x4K60 (H.265) 7x4K30 (H.265) 11x1080p60 (H.265) 22x 1080p30 (H.265)
PCIe	1x8 + 1x4 + 1x2 + 2x1 (PCIe Gen4, Root Port & Endpoint)	Up to 2x8 + 2x4 + 2x1 (PCIe Gen4, Root Port & Endpoint)
Networking	10/100/1000 BASE-T Ethernet	1x GbE 4x 10GbE
Display	3 multi-mode DP 1.4 /eDP 1.4/HDMI 2.0 No DSI support	1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Power	10W - 30W	15W - 40W	15W - 60W

上一個：Jetson Orin Nano 模組下一個：Jetson Orin NX 工控機 OrinNX-SYS-2016
