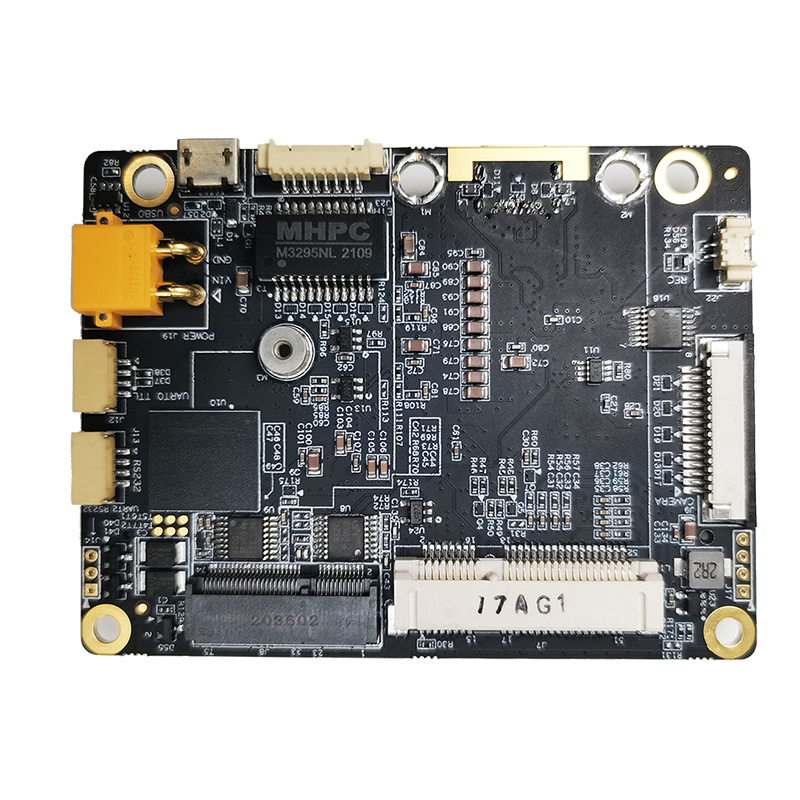

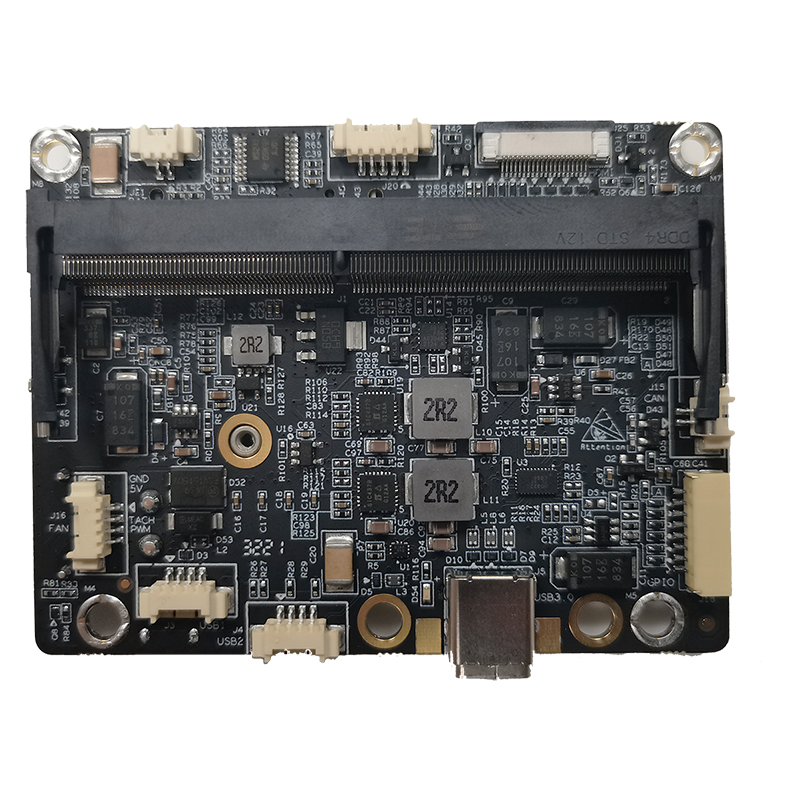

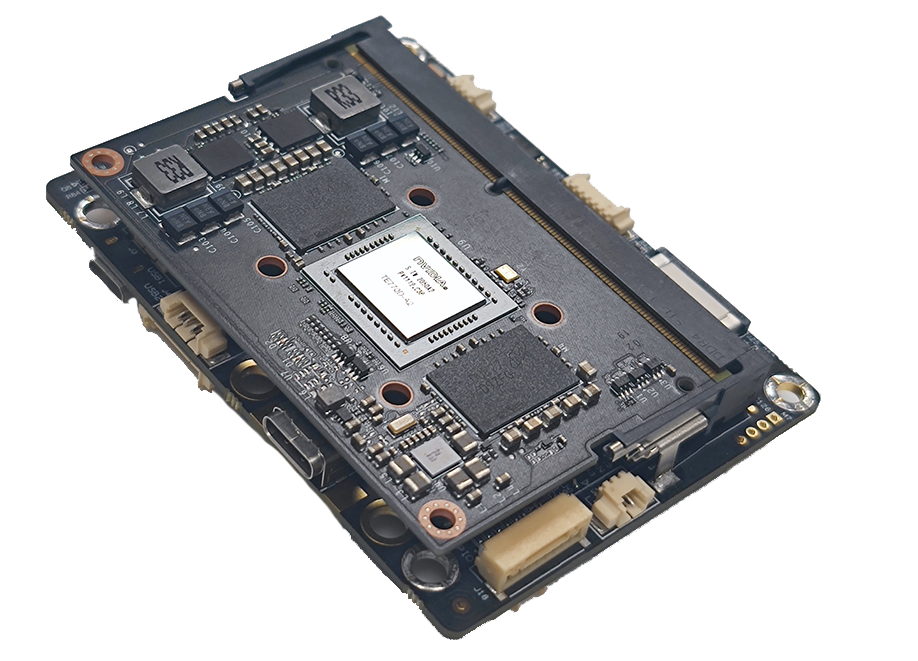

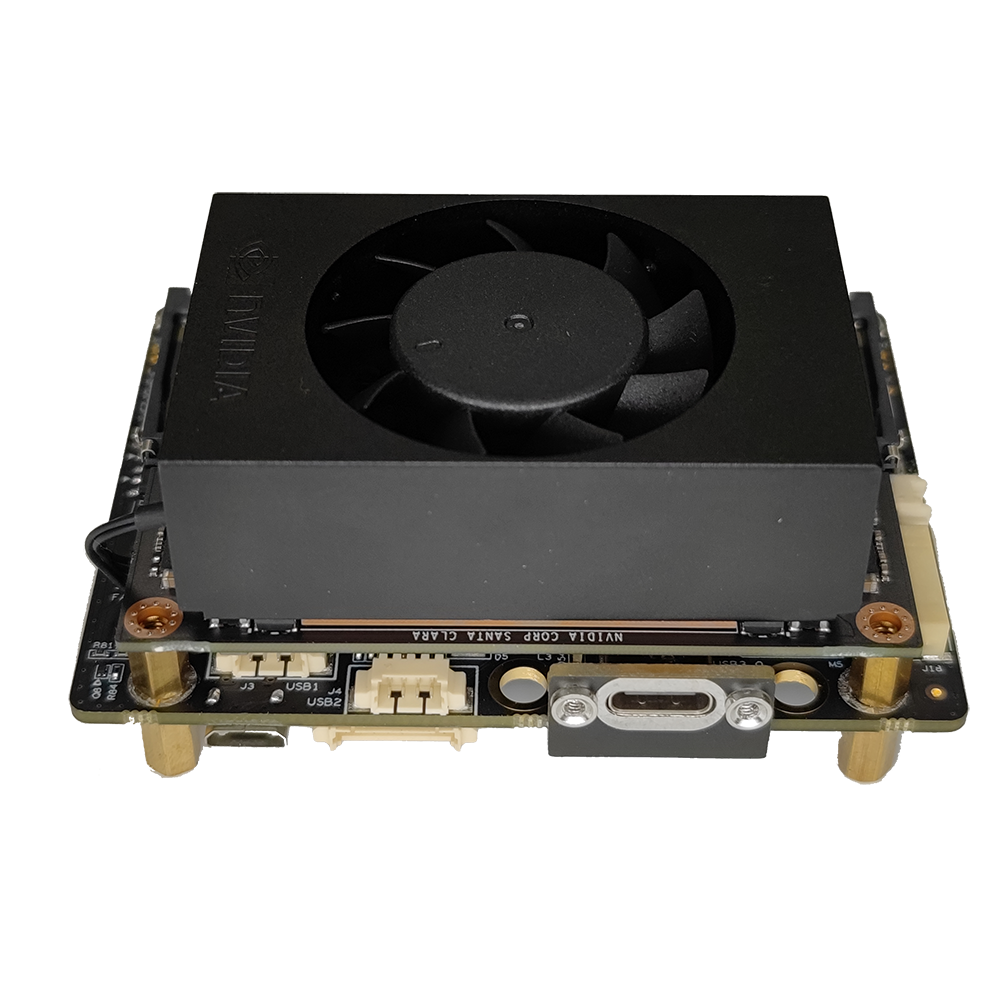

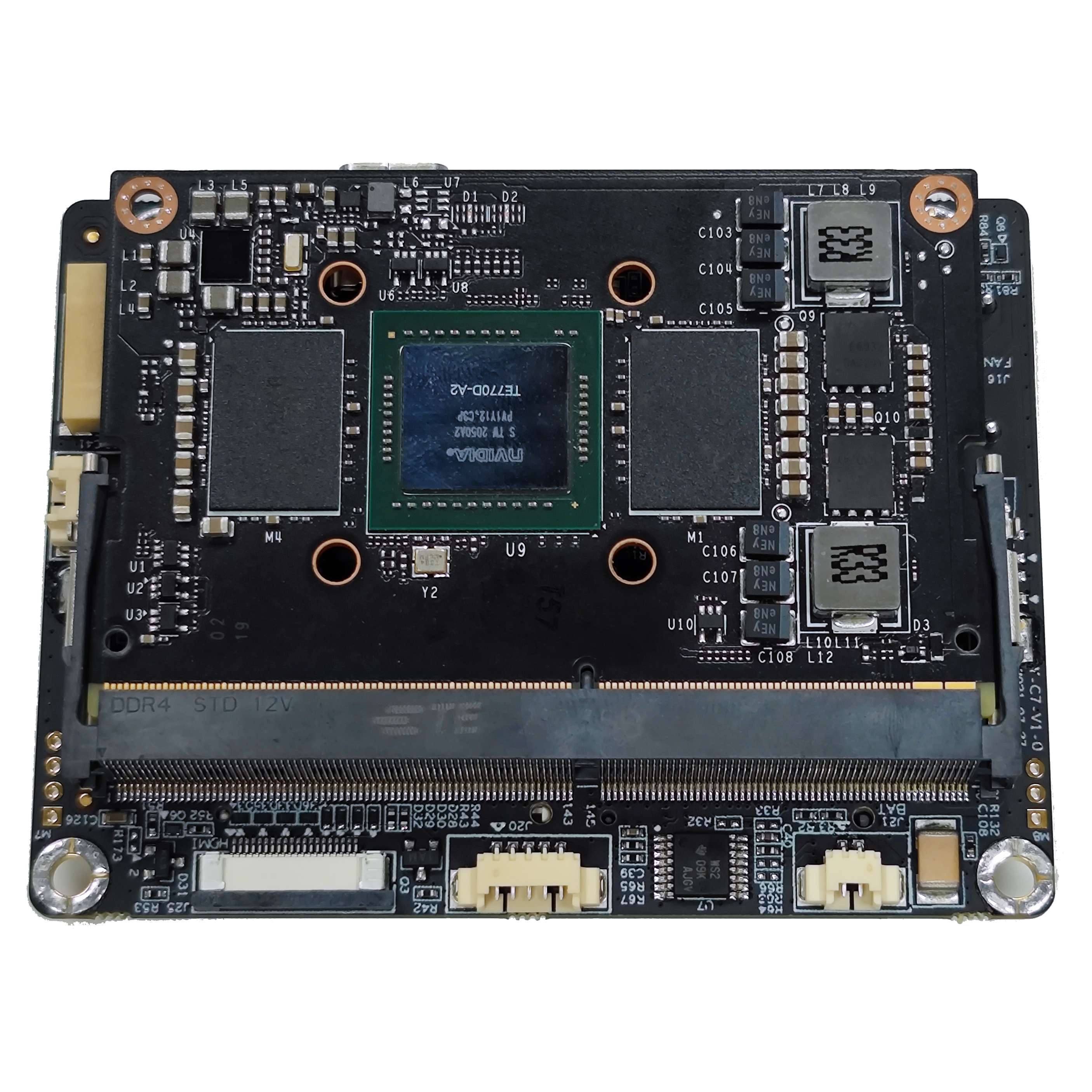

Y-C7是一款搭配NVIDIA Jetson Xavier NX、TX2 NX、Nano 系列核心模塊的低成本、小體積、工業(yè)級載板。具有豐富的對外接口，全板器件均采用寬溫型號。針對無人機抗震要求，所有接口都采用了軟線引出設計，以便通過軟線卸力來提高與外設連接的抗震。對于高速USB3.1信號， 采用了帶固定結構的Type-C連接器設計，可通過螺絲來鎖緊Type-C外設或轉接線。

?  64G EMMC onboard

? 1 Full-speed USB3.1 Type C connector

? 1 Micro USB connector
? 1 Gigabit Ethernet (10 / 100 / 1000 BASE-T) RJ45 connector
? 1 HDMI 2.0 interface (up to 6Gbps, 24bpp, 4096x2160@60Hz)
? 1 USB2.0 connector
? 1 M.2 Key E connector
? 1 fan control interface
? 1 Full-length miniPCIe connectors
? 1 group of I2C signals with 3.3V level
? 1 CAN bus interface with on-board transceiver
? 1 RS-232 level serial port, one 3.3V level UART port
? Three 3.3V bit programmable GPIO, one 3.3V strong driving ability of the bit programmable GPO

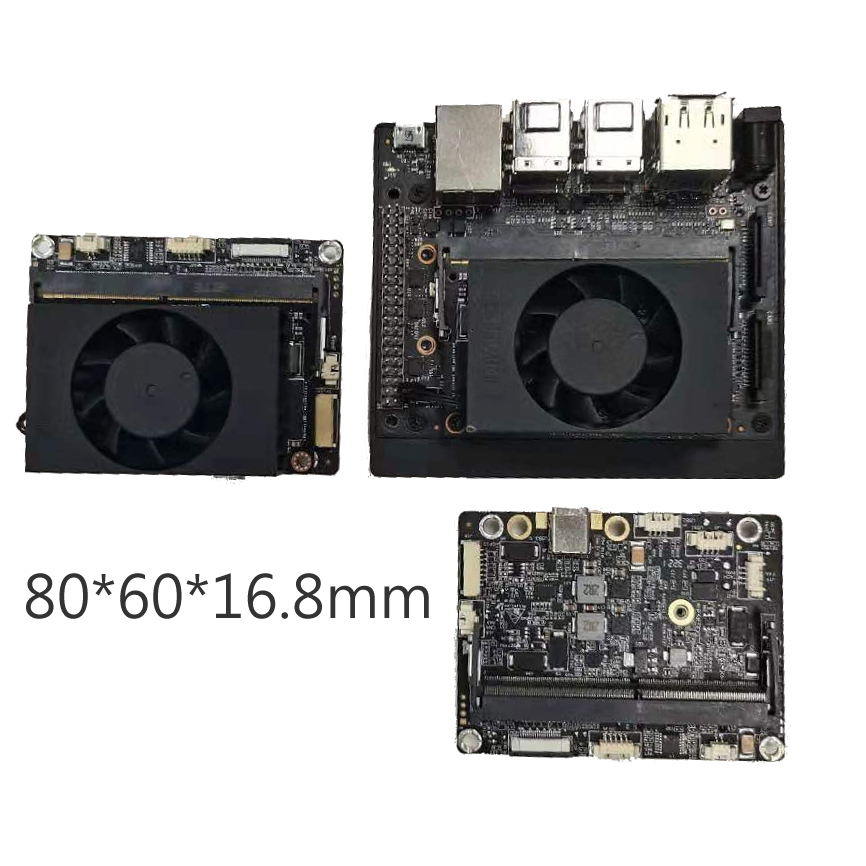

? Board size: 80mm * 60mm * 16.8 mm
? Power supply requirements: DC + 9V~ + 24V
? Operating temperature: -40~ + 85°C
? Weight: 40g
