NVIDIA Jetson Embedded Systems

IPC ONX-SYS-2016 Jetson Orin NX module

DATASHEET
JD BUY
TAOBAO BUY
Alibaba BUY

Input Power : DC +12V
Temperature Range : -25℃ to 65℃
Size : 190mm × 160mm ×76.3mm

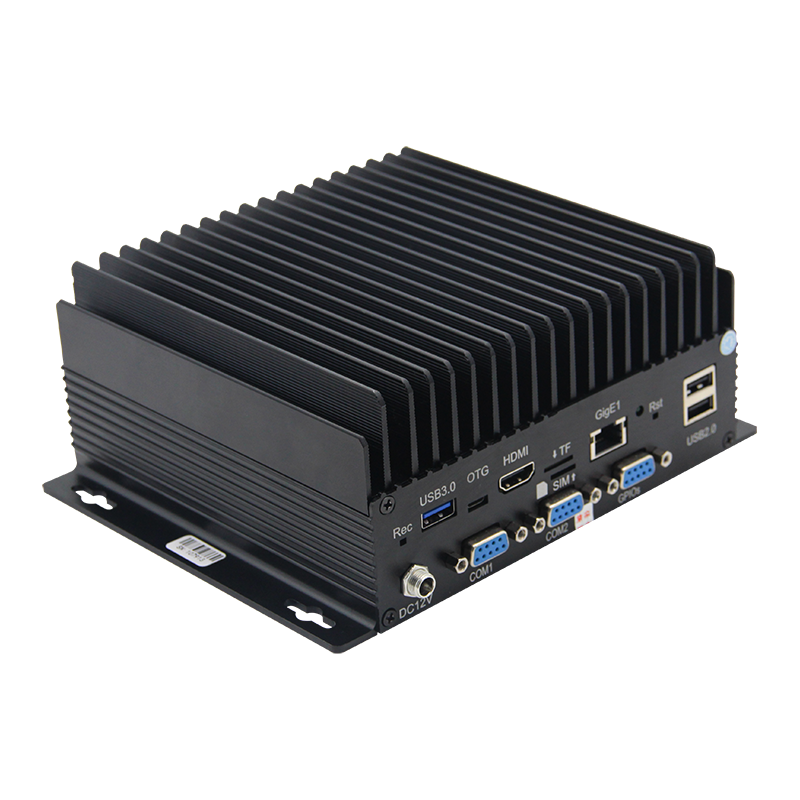

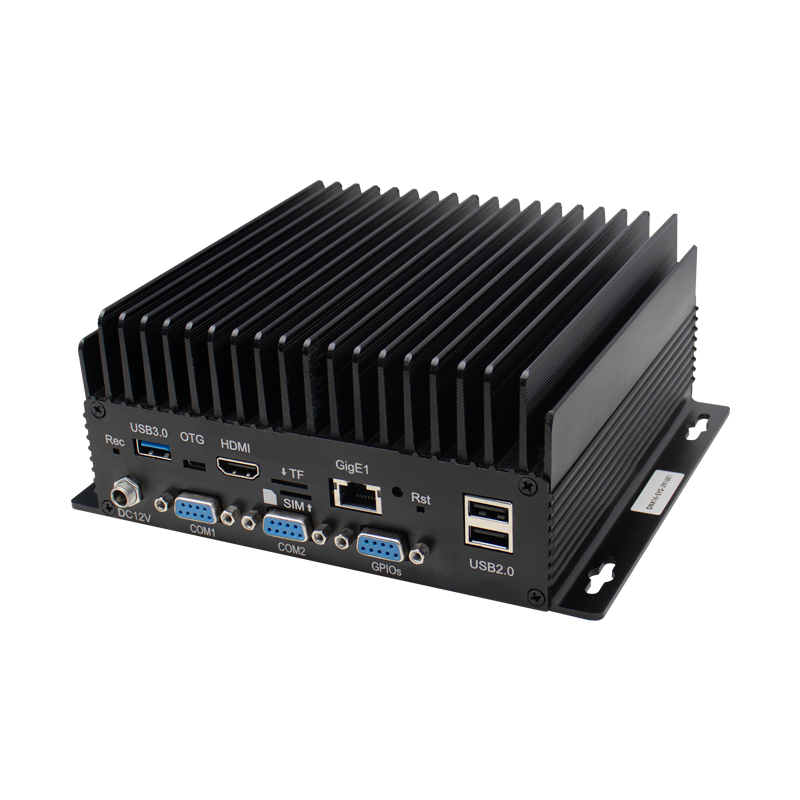

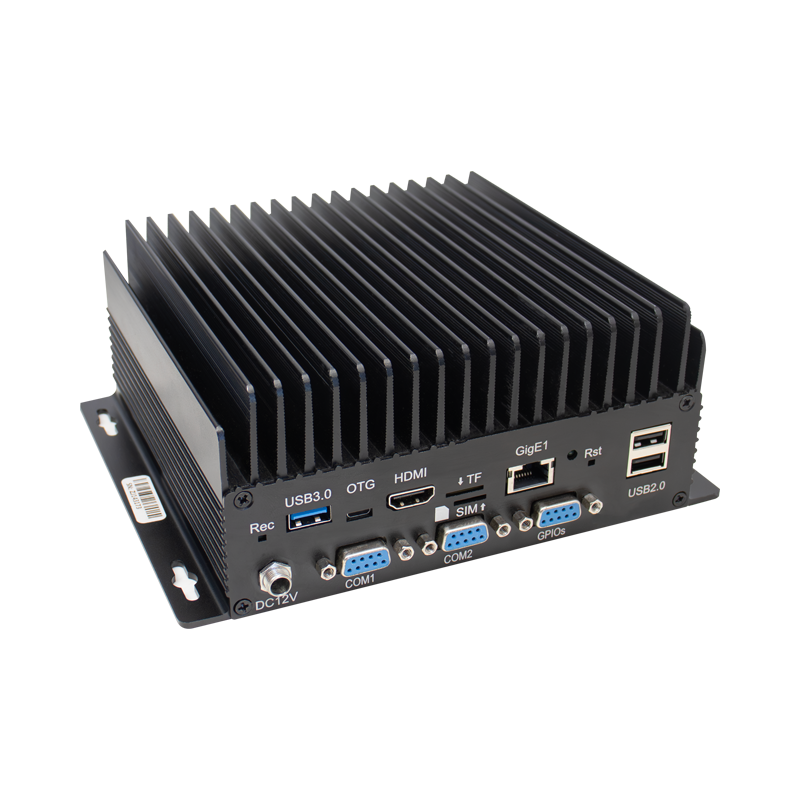

NVIDIA Jetson Orin NX

Embedded computer SYS-2016

Feature

* NVIDIA Jetson Module:

Support NVIDIA Jetson Orin NX/Xavier NX Module

* Versatile Connectivity:

Offer 1x USB 3.0, 2x USB 2.0, 1x Micro USB, 1x RJ45, 1x HDMI 2.0, 1x Micro SD

* Advanced Peripherals Supported:

Assemble 1x Nano SIM, 1x CAN, 2x RS232, 3x GPIO, 1x GPO

* Input Power: DC + 9V~+24V

* Compact and Durable during Operation:

Design in small size of 190mm*160mm*76.3mm to save operation space, and maintain function in the temperature range from -20°C to 65℃

Application

* Retail and face recognized
* Unmanned boats/cars

* Industrial automation
* IoT (Internet of Things) and embedded systems

Product Name	SYS-2016
Jetson Module Supported	NVIDIA Jetson Orin NX
Networking	1x Gigabit Ethernet (10/100/1000)
USB	1x USB 3.0 2x USB 2.0 1x Micro USB
Display	1x HDMI
M.2 KEY M	2x M.2 KEY M interface
Other I/O	1x CAN, 3x GPIO, 2x RS232, 1x Nano SIM
Mechanical	190mm x 160mm x 76.3mm
Weight	1425g
Operating Temperature	-20℃~65℃

NVIDIA Jetson Orin NX module Technical Specification

Module	NVIDIA Jetson Orin NX 16G	NVIDIA Jetson Orin NX 8G
AI Perf	100 TOPS	70 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
DL Accelerator	2x NVDLA v2	1x NVDLA v2
Memory	16GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 102.4GB/s
Storage	- (Supports external NVMe)
Video Encode	1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)
Video Decode	1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)
CSI Camera	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)
Power	10W - 25W	10W - 20W

* Pre-installed NVIDIA Jetpack, JetPack SDK includes a board support package (BSP), Linux OS, NVIDIA CUDA, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, etc.
* Support entire Jetson software stack and various developer tools for building fast and robust AI application provided by PLink-AI
