      NVIDIA Jetson Carrier Boards

      • Jetson AGX Xavier Carrier Board Y-C9
      • Jetson AGX Xavier Carrier Board Y-C9
      • Jetson AGX Xavier Carrier Board Y-C9
      • Jetson AGX Xavier Carrier Board Y-C9
      • Jetson AGX Xavier Carrier Board Y-C9
      Jetson AGX Xavier Carrier Board Y-C9Jetson AGX Xavier Carrier Board Y-C9Jetson AGX Xavier Carrier Board Y-C9Jetson AGX Xavier Carrier Board Y-C9Jetson AGX Xavier Carrier Board Y-C9

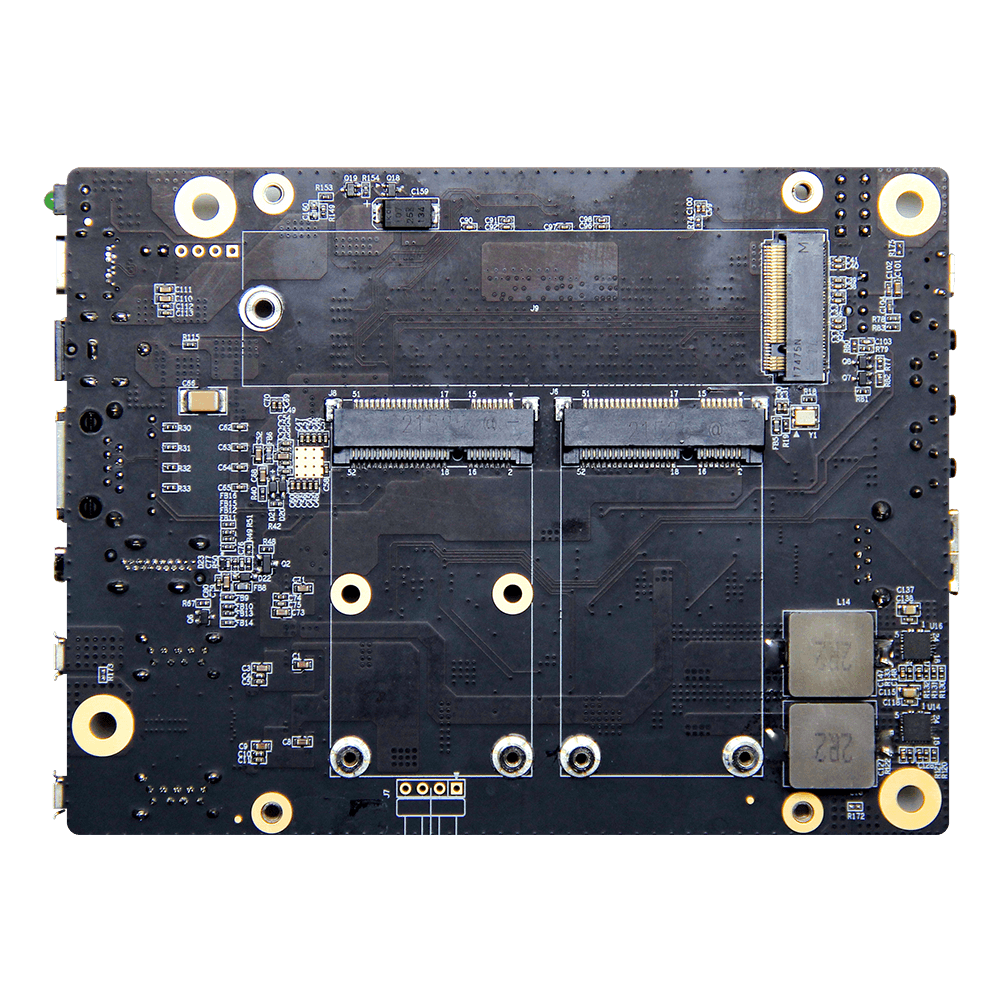

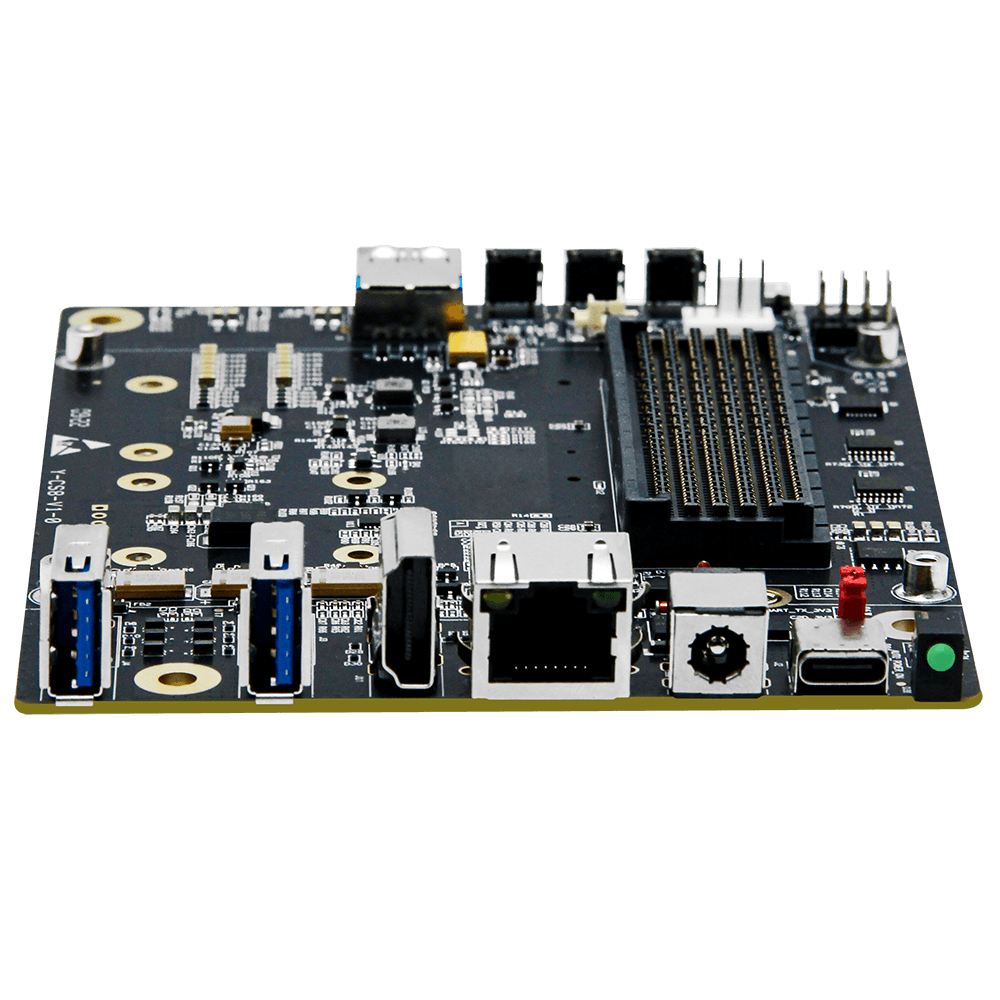

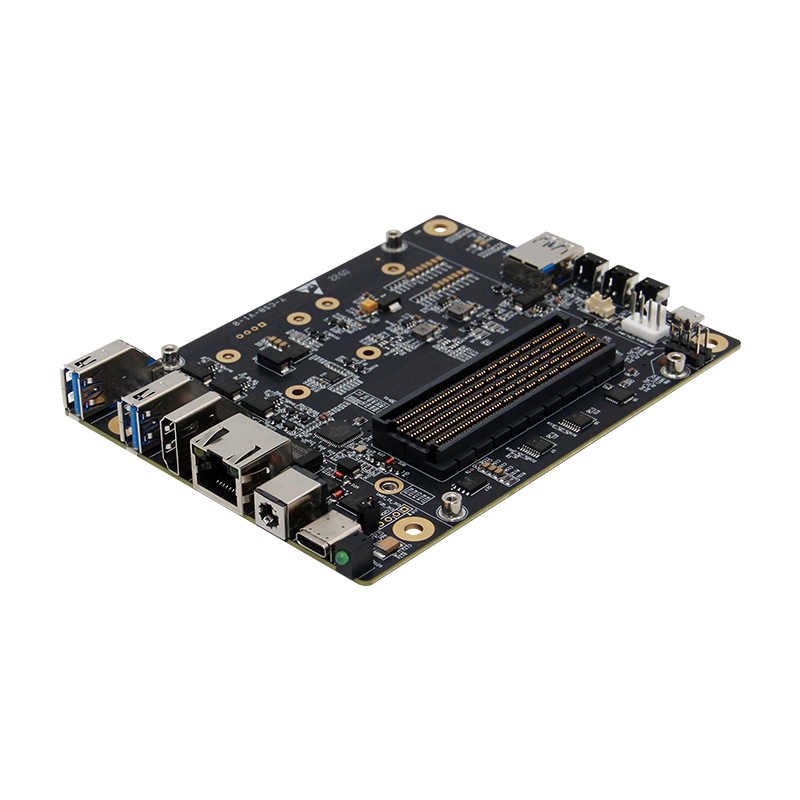

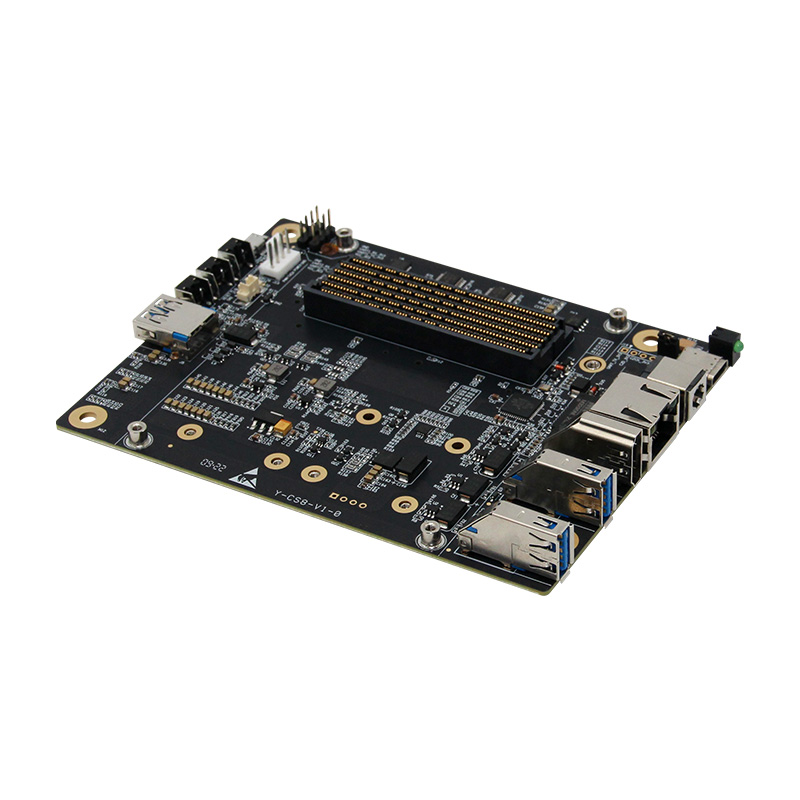

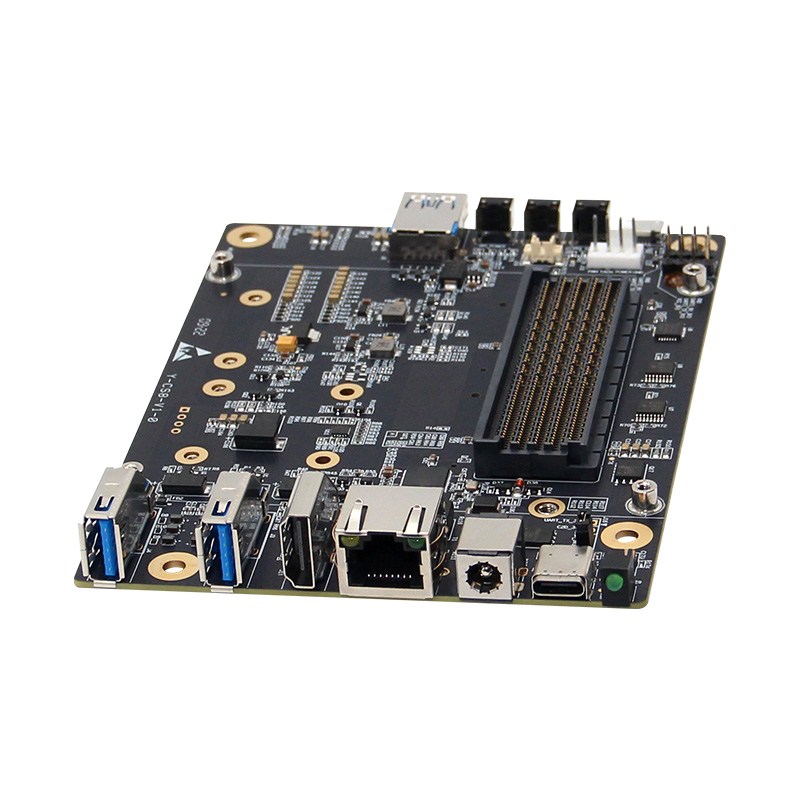

      Jetson AGX Xavier Carrier Board Y-C9

      Three full speed USB3.0 Type A connectors
      1 USB Type-C connector
      One standard M.2 Key M connector, supporting NVME
      2 full-length miniPCIe connectors with PCIe x1 signal
      Two 3.3V TTL serial ports
      Support automatic power-on or button start
      NVIDIA Jetson AGX Xavier/AGX Xavier Industrial

      Carrier Board Y-C9

      * NVIDIA Jetson Carrier Board:

      Support NVIDIA Jetson AGX Xavier/AGX Xavier Industrial Module

      * Versatile Connectivity:
      Offer 1x RJ45, 3x USB Type-A, 1x Micro B, 1x HDMI and 1x USB Type-C

      * Advanced Peripherals Supported:

      Assemble 1x RTC, 1x M.2 Key M connector, 2x UART Serial port, 1x FAN Connector, 2x MiniPCIE connector


      * Input Power: DC +12V

      * Compact and Durable during Operation:
      Design in small size of 136mm*100mm*45mm to save operation space, and maintain function in the temperature range from -20°C to 65℃
      Product Name
      Y-C9
      Jetson Module Supported
      NVIDIA Jetson AGX Xavier/AGX Xavier Industrial
      Networking
      1x Gigabit Ethernet (10/100/1000 BAST-T) RJ45
      USB
      3x USB
      1x Micro-B
      Display
      1x HDMI
      FAN
      1x FAN connector(12V PWM)
      M.2 KEY M
      1x M.2 KEY M connector
      Mechanical
      136mm x 100mm x 20mm
      Weight
      118g
      Operating Temperature
      -20℃~+65℃
      Jetson AGX Xavier Industrial
      Jetson AGX Xavier 32GB
      AI Performance
      30 TOPS
      32 TOPS
      GPU
      512-core NVIDIA Volta architecture GPU with 64 Tensor Cores
      CPU
      8-core NVIDIA Carmel Arm®v8.2 64-bit CPU
      8MB L2 + 4MB L3
      Memory
      32GB 256-bit LPDDR4x (ECC support)
      136.5GB/s
      32GB 256-bit LPDDR4x
      136.5GB/s
      Storage
      64GB eMMC 5.1
      32GB eMMC 5.1
      Video Encode
      2x 4K60 (H.265)
      6x 4K30 (H.265)
      12x 1080p60 (H.265)
      24x 1080p30 (H.265)
      4x 4K60 (H.265)
      8x 4K30 (H.265)
      16x 1080p60 (H.265)
      32x 1080p30 (H.265)
      Video Decode
      2x 8K30 (H.265)
      4x 4K60 (H.265)
      8x 4K30 (H.265)
      18x 1080p60 (H.265)
      36x 1080p30 (H.265)
      2x 8K30 (H.265)
      6x 4K60 (H.265)
      12x 4K30 (H.265)
      26x 1080p60 (H.265)
      52x 1080p30 (H.265)
      CSI Camera
      Up to 6 cameras
      (36 via virtual channels)
      16 lanes MIPI CSI-2
      D-PHY 1.2 (up to 40 Gbps)
      C-PHY 1.1 (up to 62 Gbps)
      Up to 6 cameras
      (36 via virtual channels)
      16 lanes MIPI CSI-2 | 8 lanes SLVS-EC
      D-PHY 1.2 (up to 40 Gbps)
      C-PHY 1.1 (up to 62 Gbps)
      PCIe*
      1 x8 + 1 x4 + 1 x2 + 2 x1
      (PCIe Gen4, Root Port & Endpoint)
      USB*
      3x USB 3.2 Gen2 (10 Gbps)
      4x USB 2.0
      Display
      3 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
      Other I/O
      5x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, PWM, DMIC, GPIOs
      Power
      20W - 40W
      10W - 30W
      Y-C8
      Y-C9
      AGX Orin Developer Kit
      USB Type-A
      2x USB 3.0
      3x USB 3.0
      2x USB 3.2 2.0 2x USB 3.2 1.0
      USB Type-C
      1x USB Type-C
      2X USB 3.2 2.0
      supporting USB-PD
      USB Micro-B
      1x USB 2.0
      USB 2.0(DEBUG)
      PCIe
      x16 PCIe slot supporting PCIe x8
      x16 PCIe slot supporting x8 PCIe Gen4
      MiniPCIe
      2x MPCIe
      2x MPCIe
      RJ45
      2x RJ45
      one of the RJ45 connector needs
      1x RJ45
      1x RJ45 connector with up to 10 GbE
      DisplayPort
      HDMI
      HDMI
      1x DisplayPort 1.4a (+MST) connector
      M.2 Key M
      2x
      1x
      x4 PCIe Gen4
      M.2 Key E
      x1 PCIe Gen4
      microSD slot
      1x
      UHS-1 card supporting SDR104
      Other I/O
      2x CAN
      4xGPIO
      1x SPI
      1x I2C
      40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO)
      12-pin automation header
      10-pin audio panel header
      10-pin JTAG header
      4-pin fan header
      2-pin RTC batter backup connector
      microSD slot
      DC power jack
      Power, Force Recovery, and Reset buttons
